Stamping/ Stacking Robot SDCX RMD-300/200/160/120/35/08/110/20/50 Featured Image

Kudhinda/Kurongedza Robhoti SDCX RMD-300/200/160/120/35/08/110/20/50

Sumo pfupi yechigadzirwa

Robhoti yekutsikisa inoshandiswa zvakanyanya kurongedza, kumisa, kutakura uye mamwe mabasa muminda yekurongedza, chinwiwa, indasitiri yemakemikari, chikafu, nezvimwe, ichipa vashandisi seti yakazara yekutsanya, yakachengeteka, inochinjika, yakarurama uye yekumisikidza mashandiro ekugadzirisa.

TAURA NESU

Product Detail

Product Tags

Technical Parameters

Muenzaniso Nha.	Dhigirii reRusununguko	Kutyaira mode	Payload (KG)	Kudzokororwa kwenzvimbo (mm)	Range yekufamba (°)				Kumhanya kukuru (°/s)				Inobvumirwa mutoro inertia yeruoko (kg·m²)	Circular beat (kutenderera/awa)	Radhiyasi yekufamba (mm)	Local Weight (kg)
Muenzaniso Nha.	Dhigirii reRusununguko	Kutyaira mode	Payload (KG)	Kudzokororwa kwenzvimbo (mm)	J1	J2	J3	J4	J1	J2	J3	J4	Inobvumirwa mutoro inertia yeruoko (kg·m²)	Circular beat (kutenderera/awa)	Radhiyasi yekufamba (mm)	Local Weight (kg)

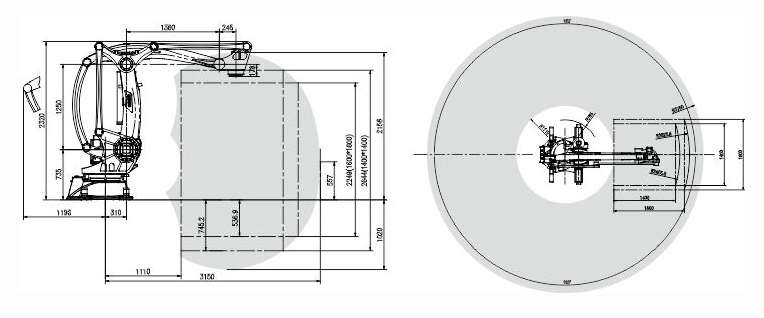

SDCX-RMD300	4	AC servo drive	300	±0.5	±180	± +100~-44	± +121~-15	±360	85	90	100	190	134	1000^③	3150	1500
SDCX-RMD200	4	AC servo drive	200	±0.3	±180	± +100~-44	± +121~-15	±360	105	107	114	242	78	1300^③	3150	1500
SDCX-RMD160	4	AC servo drive	160	±0.3	±180	± +100~-44	± +121~-15	±360	123	123	128	300	78	1500^③	3150	1500
SDCX-RMD120	4	AC servo drive	120	±0.3	±180	± +100~-44	± +121~-15	±360	128	126	135	300	78	1560^③	3150	1500

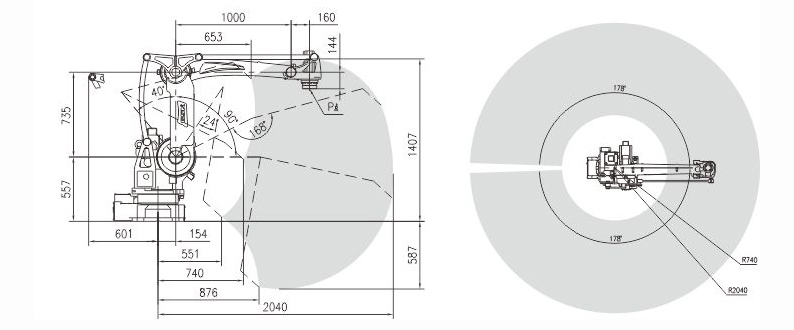

SDCX-RMD50	4	AC servo drive	50	±0.2	±178	± +90~-40	± +65~-78	±360	171	171	171	222	4.5	1700^②	2040	660

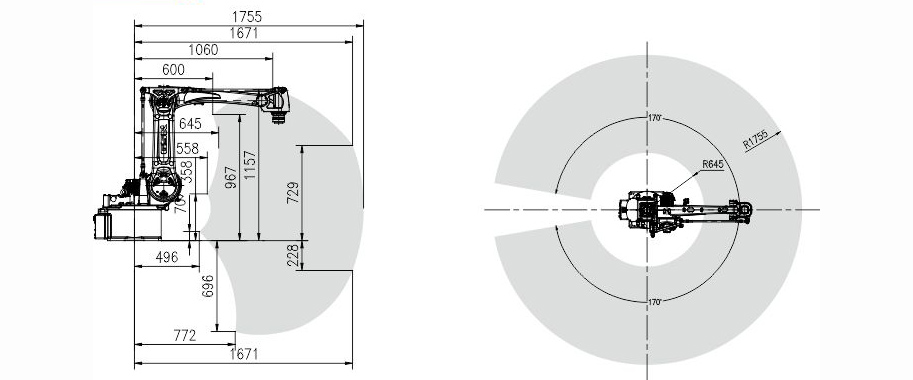

SDCX-RMD20	4	AC servo drive	20	±0.08	±1170	± +115~-25	± +70~-90	±360	170	170	185	330	0.51	1780^①	1720	256

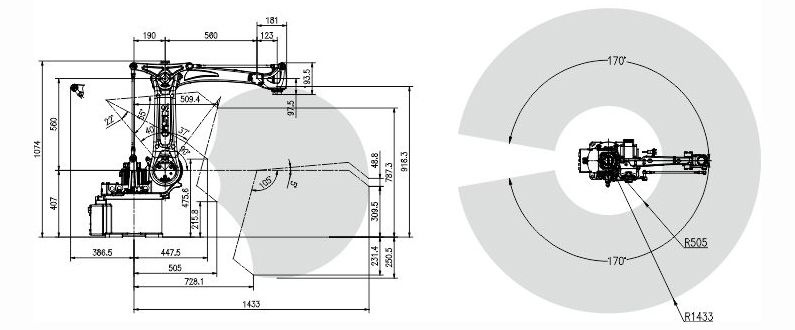

SDCX-RMD08	4	AC servo drive	8	±0.08	±170	± +90~-40	± +68~-90	±360	251	195	195	367.5	0.25	1800^①	1433	180

Mashoko

① The test track ndeye 150mm kureba uye 1000mm yakafara, uye iyo chaiyo kutenderera nguva inokanganiswa nemamiriro chaiwo ekushanda;

② Nzira yekuedza ndeye 200mm yakakwirira uye 1000mm yakafara, uye nguva chaiyo yekutenderera inokanganiswa nemamiriro chaiwo ekushanda;

③ The test track ndeye 400mm kureba uye 2000mm yakafara, uye chaiyo kutenderera nguva inokanganiswa nemamiriro chaiwo ekushanda;

Dzivisa kusangana neanopisa, anoputika uye anoparadza magasi uye zvinwiwa;Ita kuti usasasa nemvura, mafuta neguruva;Ramba kure nemagetsi eruzha masosi (plasma)
