Robhoti yekutakura SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

Sumo pfupi yechigadzirwa

Zvifambiso zvemaindasitiri marobhoti anonyanya kushandiswa mukukuya, kukwenenzvera, kurodha uye kuvharika pane/kubva mumichina maturusi, otomatiki yekufambisa yekutsikisa otomatiki mitsara yekugadzira, nezvimwewo. Robhoti yekufambisa chigadzirwa chinongoshandisa chinoshandisa nzira yerobhoti kutsiva manyorerwo ekufambisa.Chakanakira chayo ndechekuti inokwanisa kuita marudzi ese emabasa anotarisirwa nehurongwa.Iyo inosanganisa mabhenefiti ezvese munhu uye muchina muchimiro uye mashandiro ayo, kunyanya kubatanidza hungwaru hwekugadzira uye kuchinjika.

TAURA NESU

Product Detail

Product Tags

Technical Parameters

Muenzaniso Nha.		Dhigirii reRusununguko	Kutyaira mode	Payload (kg)	Kudzokororwa kwenzvimbo chaiyo (mm)	Range yekufamba (°)						Maximum speed (°/s)						Yakanyanya kubvumidzwa torque (N. m)			Radhiyasi yekufamba (mm)	Deaa uremu (kg)
Muenzaniso Nha.		Dhigirii reRusununguko	Kutyaira mode	Payload (kg)	Kudzokororwa kwenzvimbo chaiyo (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radhiyasi yekufamba (mm)	Deaa uremu (kg)

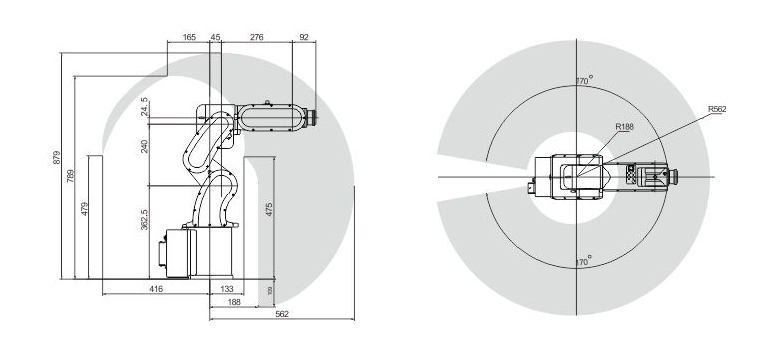

SDCX-RB03A1		6	AC servo drive	3	±0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	AC servo drive	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo drive	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180

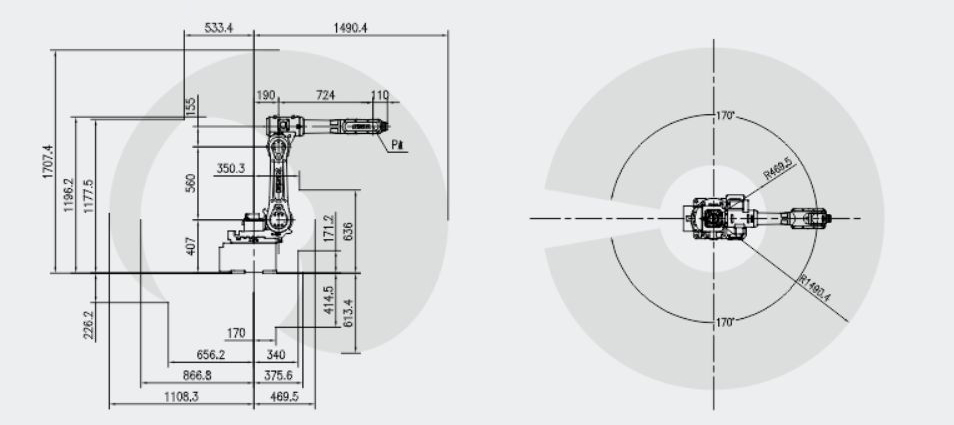

SDCX-RB08A3-1490		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185

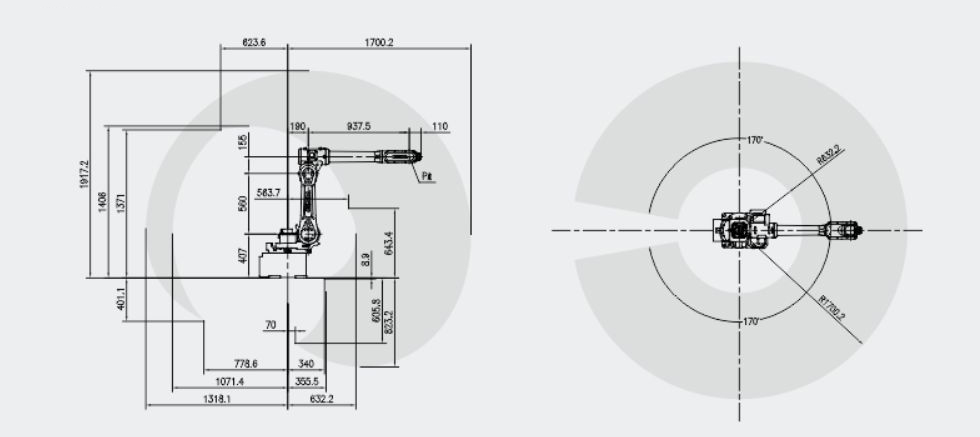

SDCX-RB08A3-1700		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187

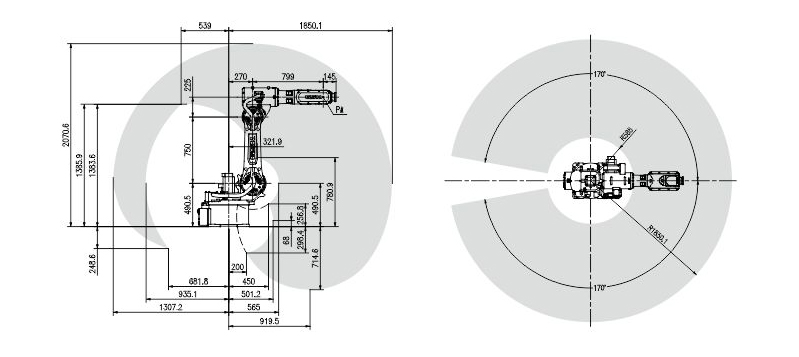

SDCX-RB08A3-1840		6	AC servo drive	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	AC servo drive	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
SDCX-RB20 Series	SDCX-RB06-2060	6	AC servo drive	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285

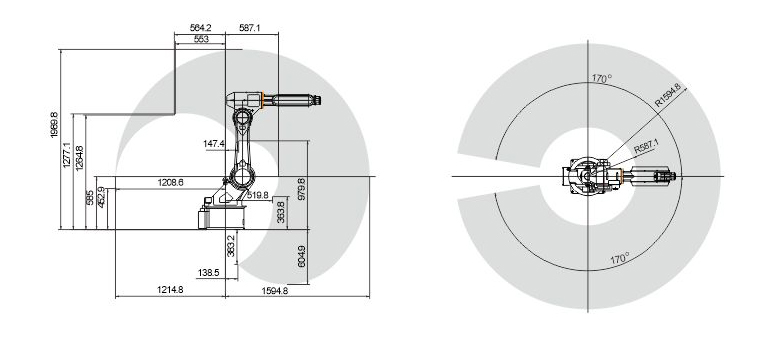

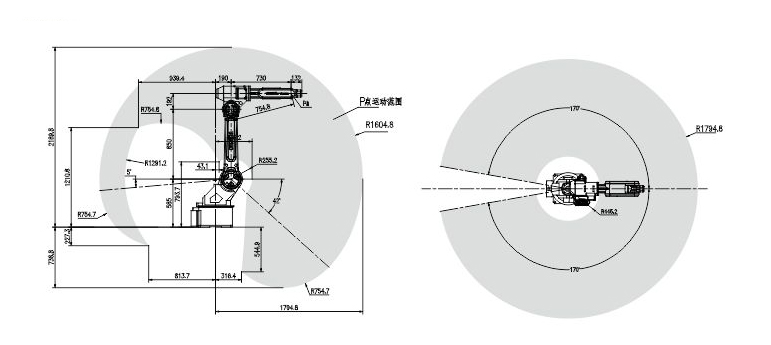

	SDCX-RB15L	6	AC servo drive	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300
	SDCX-RB20	6	AC servo drive	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	AC servo drive	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600

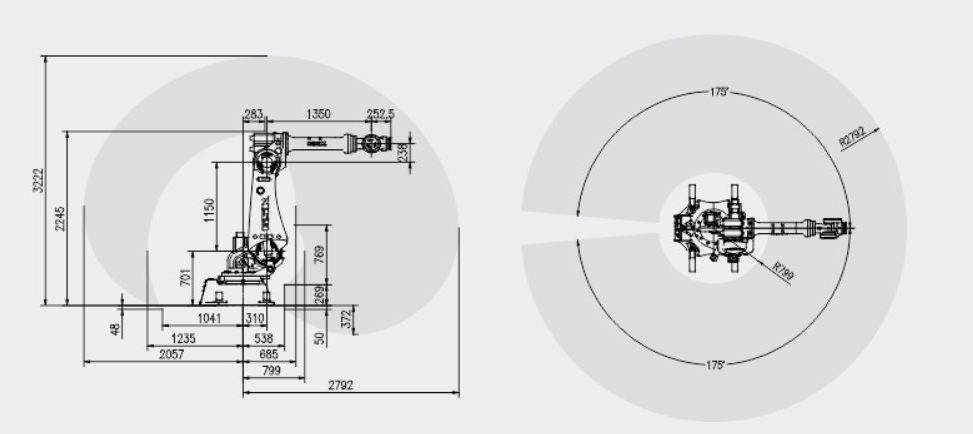

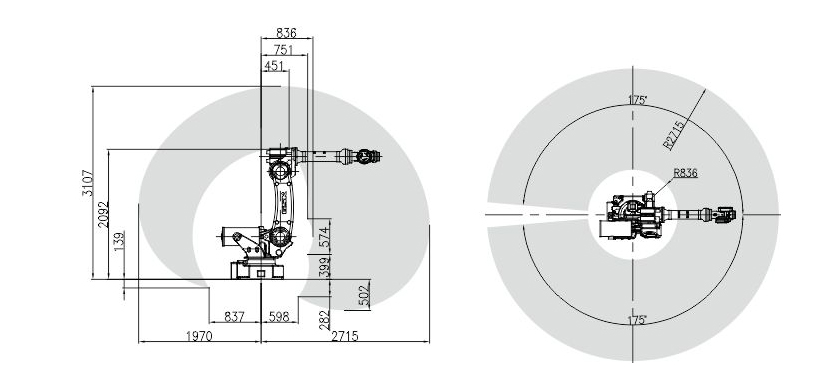

SDCX-RB130		6	AC servo drive	130	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420
SDCX-RB165		6	AC servo drive	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo drive	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	AC servo drive	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Dzivisa kusangana neanopisa, anoputika uye anoparadza magasi uye zvinwiwa;Ita kuti usasasa nemvura, mafuta neguruva;Ramba kure nemagetsi eruzha masosi (plasma)
